※Sintered Diamond Saw Blade 1. Cold pressed-segmented saw blade
| |
|
ORDER NO |
OUTER DIAMETER(D) |
INNER DIAMETER(H) |
SEGMENT SIZE |
SEGMENT |
| |
INCHES |
MM |
INCHES |
METRIC(MM) |
(T x H x L) |
PCS |
|
SMT01105 |
4" |
105 |
5/8" 7/8" |
16 20 22.23 |
1.8 x 7.0 x 35 |
6/7/8 |
|
SMT01110 |
4.3" |
110 |
5/8" 7/8" |
16 20 22.23 |
1.9 x 7.0 x 32.3 |
9 |
|
SMT01115 |
4.5" |
115 |
7/8" |
20 22.23 |
1.9x7.0 x38.3 |
8 |
|
SMT01125 |
5" |
125 |
7/8" |
20 22.23 |
1.9x7.0 x37.5 |
9 |
|
SMT01150 |
6" |
150 |
7/8" |
20 22.23 |
1.9x7.033.5 |
12 |
|
SMT01180 |
7" |
180 |
7/8" 1" 1-1/5" |
22.23 25.4 30 |
2.2 x 7.0 x 35 |
14 |
|
SMT01200 |
8" |
200 |
7/8" 1" 1-1/5" |
22.23 25.4 30 |
2.4x7.0 x39.2 |
14 |
|
SMT01230 |
9" |
230 |
7/8" 1" 1-1/5" 2" |
22.23 25.4 30 50 |
2.4x7.2x34.4 |
16/18 |
|
SMT01250 |
10" |
250 |
7/8" 1" 1-1/5" 2" |
22.23 25.4 30 50 |
3.0x7.5x37 |
16/18 |
|
SMT01300 |
12" |
300 |
7/8" 1" 1-1/5" 2" |
22.23 25.4 30 50 |
3.2x7.5 x 35 |
22 |
|
SMT01350 |
14" |
350 |
7/8" 1" 1-1/5" 2" |
22.23 25.4 30 50 |
3.2 x7.5x40 |
24 |
|
Other specifications and sizes are available up on request.

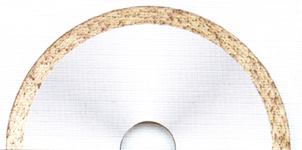

2. Cold pressed-continuous rim saw blade
|
|
|
|
|
ORDER NO |
OUTER DIAMETER(D) |
INNER DIAMETER(H) |
SEGMENT SIZE |
| |
INCHES |
MM |
INCHES |
METRIC(MM) |
(T x H) |
|
SMT02105 |
4" |
105 |
5/8" or 7/8" |
16 20 22.23 |
1.8 x 5.0 |
|
SMT02110 |
4.3" |
110 |
5/8" or 7/8" |
16 20 22.23 |
1.9 x 5.0 |
|
SMT02115 |
4.5" |
115 |
7/8" |
20 22.23 |
1.5 x 5.0 |
|
SMT02125 |
5" |
125 |
7/8" |
20 22.23 |
1.9 x 5.0 |
|
SMT02150 |
6" |
150 |
7/8" |
20 22.23 |
1.9 x 5.0 |
|
SMT02180 |
7" |
180 |
7/8" or 1" or 1-1/5" |
22.23 25.4 30 |
2.2 x 5.0 |
|
SMT02200 |
8" |
200 |
7/8" or 1" or 1-1/5" |
22.23 25.4 30 |
2.4 x 5.0 |
|
SMT02230 |
9" |
230 |
7/8" or 1" or 1-1/5" or 2" |
22.23 25.4 30 50 |
2.4 x 5.0 |
|
SMT02250 |
10" |
250 |
7/8" or 1" or 1-1/5" or 2" |
22.23 25.4 30 50 |
3.0 x 6.0 |
|
SMT02300 |
12" |
300 |
7/8" or 1" or 1-1/5" or 2" |
22.23 25.4 30 50 |
3.2 x 6.0 |
|
SMT02350 |
14" |
350 |
7/8" or 1" or 1-1/5" or 2" |
22.23 25.4 30 50 |
3.2 x 7.5 |
|
Other specifications and sizes are available up on request.
3. Cold pressed-turbo saw blade
|
|
| |
|
FLAT TURBO |
|
ORDER NO |
OUTER DIAMETER(D) |
INNER DIAMETER(H) |
SEGMENT SIZE |
| |
INCHES |
MM |
INCHES |
METRIC(MM) |
(T x H) |
|
SMT03105-F |
4" |
105 |
5/8"\20\7/8" |
16\20\22.23 |
2.2 x 7.5 |
|
SMT03110-F |
4.3" |
110 |
5/8"\20\7/8" |
16\20\22.23 |
2.2 x 7.5 |
|
SMT03115-F |
4.5" |
115 |
20\7/8" |
20\22.23 |
2.4 x 7.5 |
|
SMT03125-F |
5" |
125 |
20\7/8" |
20\22.23 |
2.4 x 7.5 |
|
SMT03150-F |
6" |
150 |
20\7/8" |
20\22.23 |
2.4 x 7.5 |
|
SMT03180-F |
7" |
180 |
7/8"\1"\1"-1"/5" |
22.23\25.4\30 |
2.6 x 8.0 |
|
SMT03200-F |
8" |
200 |
7/8"\1"\1"-1"/5" |
22.23\25.4\30 |
2.6 x 8.0 |
|
SMT03230-F |
9" |
230 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
3.1 x 8.0 |
|
SMT03250-F |
10" |
250 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
3.2 x 8.0 |
|
SMT03300-F |
12" |
300 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
3.2 x 8.0 |
|
SMT03350-F |
14" |
350 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
3.2 x 8.0 |
|
| |
|
WAVE TURBO |
|
ORDER NO |
OUTER DIAMETER(D) |
INNER DIAMETER(H) |
SEGMENT SIZE |
| |
INCHES |
MM |
INCHES |
METRIC(MM) |
(T x H) |
|
SMT03105-W |
4" |
105 |
5/8"\20\7/8" |
16\20\22.23 |
2.2 x 7.0 |
|
SMT03110-W |
4.3" |
110 |
5/8"\20\7/8" |
16\20\22.23 |
2.2 x 7.0 |
|
SMT03115-W |
4.5" |
115 |
20\7/8" |
20\22.23 |
2.5 x 7.0 |
|
SMT03125-W |
5" |
125 |
20\7/8" |
20\22.23 |
2.5 x 7.5 |
|
SMT03150-W |
6" |
150 |
20\7/8" |
20\22.23 |
2.4 x 7.5 |
|
SMT03180-W |
7" |
180 |
7/8"\1"\1"-1"/5" |
22.23\25.4\30 |
3.0 x 7.5 |
|
SMT03200-W |
8" |
200 |
7/8"\1"\1"-1"/5" |
22.23\25.4\30 |
3.2 x 7.5 |
|
SMT03300-W |
9" |
230 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
3.2 x 7.5 |
|
SMT03350-W |
12" |
350 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
3.4 x 8.0 |
|
Other specifications and sizes are available up on request.
4. Hot pressed-segmented saw blade
|
|
|
|
|
ORDER NO |
OUTER DIAMETER(D) |
INNER DIAMETER(H) |
SEGMENT SIZE |
SEGMENT |
| |
INCHES |
MM |
INCHES |
METRIC(MM) |
MM(T x H x L) |
PCS |
|
SMT04105 |
4" |
105 |
5/8"\20\7/8" |
16\20\22.23 |
1.6x7.0 x 35 |
8 |
|
SMT04110 |
4.3" |
110 |
5/8"\20\7/8" |
16\20\22.23 |
1.6x7.0 x32.3 |
9 |
|
SMT04115 |
4.5" |
115 |
20\7/8" |
20\22.23 |
1.6x7.0 x38.3 |
8 |
|
SMT04125 |
5" |
125 |
20\7/8" |
20\22.23 |
1.8x7.0 x37.3 |
9 |
|
SMT04150 |
6" |
150 |
20\7/8" |
20\22.23 |
1.8x7.0 x33.5 |
12 |
|
SMT04180 |
7" |
180 |
7/8"\1"\1"-1"/5" |
22.23\25.4\30 |
1.8x7.0 x35 |
14 |
|
SMT04200 |
8" |
200 |
7/8"\1"\1"-1"/5" |
22.23\25.4\30 |
1.8x7.0 x39.2 |
14 |
|
SMT04230 |
9" |
230 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
2.0x7.2x 34.4 |
18 |
|
SMT04250 |
10" |
250 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
2.0 x 7.5 x 37 |
18 |
|
SMT04300 |
12" |
300 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
2.4 x 7.5 x 35 |
22 |
|
SMT04350 |
14" |
350 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
2.4 x 7.5 x 40 |
25 |
|
Other specifications and sizes are available up on request.
5. Hot pressed-continuous rim saw blade
|
|
|
|
|
ORDER NO |
OUTER DIAMETER(D) |
INNER DIAMETER(H) |
SEGMENT SIZE |
| |
INCHES |
MM |
INCHES |
METRIC(MM) |
(T x H x L) |
|
SMT05105 |
4" |
105 |
5/8"\20\7/8" |
16\20\22.23 |
1.6 x 7.0 x 10 |
|
SMT05110 |
4.3" |
110 |
5/8"\20\7/8" |
16\20\22.23 |
1.6 x 7.0 x 10 |
|
SMT05115 |
4.5" |
115 |
20\7/8" |
20\22.23 |
1.6 x 7.0 |
|
SMT05125 |
5" |
125 |
20\7/8" |
20\22.23 |
1.8 x 7.0 |
|
SMT05150 |
6" |
150 |
20\7/8" |
20\22.23 |
1.8 x 7.0 |
|
SMT05180 |
7" |
180 |
7/8"\1"\1"-1"/5" |
22.23\25.4\30 |
1.8 x 7.0 |
|
SMT05200 |
8" |
200 |
7/8"\1"\1"-1"/5" |
22.23\25.4\30 |
1.8 x 7.0 |
|
SMT05230 |
9" |
230 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
2.0 x 7.0 |
|
SMT05250 |
10" |
250 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
2.0 x 7.0 |
|
SMT05300 |
12" |
300 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
2.4 x 7.0 |
|
SMT05350 |
14" |
350 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
2.4 x 7.0 |
|
Other specifications and sizes are available up on request.
6. Hot pressed-turbo saw blade
|
|
|
|
|
ORDER NO |
OUTER DIAMETER(D) |
INNER DIAMETER(H) |
SEGMENT SIZE |
| |
INCHES |
MM |
INCHES |
METRIC(MM) |
(T x H) |
|
SMT06105 |
4" |
105 |
5/8"\20\7/8" |
16\20\22.23 |
2.0 x 7.0 |
|
SMT06110 , , |
4.3" |
110 |
5/8"\20\7/8" |
16\20\22.23 |
2.0 x 7.0 |
|
SMT06115 |
4.5" |
115 |
20\7/8" |
20\22.23 |
2.0 x 7.0 |
|
SMT06125 |
5" |
125 |
20\7/8" |
20\22.23 |
2.0 x 7.0 |
|
SMT06150 |
6" |
150 |
20\7/8" |
20\22.23 |
2.0 x 7.0 |
|
SMT06180 |
7" |
180 |
7/8"\1"\1"-1"/5" |
22.23\25.4\30 |
2.0 x 7.0 |
|
SMT06200 |
8" |
200 |
7/8"\1"\1"-1"/5" |
22.23\25.4\30 |
2.0 x 7.0 |
|
SMT06230 |
9" |
230 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
2.4 x 7.0 |
|
SMT06250 |
10" |
250 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
2.4 x 7.0 |
|
SMT06300 |
12" |
300 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
2.8 x 7.0 |
|
SMT06350 |
14" |
350 |
7/8"\1"\1"-1"/5"\2" |
22.23\25.4\30\50 |
3.0 x 7.0 |
|
※Brazed Diamond Saw Blade
|
|
| | ,
|
ORDER NO |
OUTER DIAMETER(D) |
INNER DIAMETER(H) |
SEGMENT DIMENSION |
SEGMENT |
| |
INCHES |
MM |
INCHES |
METRIC(MM) |
(T x H x L), |
PCS |
|
SMT07250 |
10" |
250 |
1"\2" |
25.4\50 |
2.8 x 7/8 x 40 |
17 |
|
SMT07300 |
12" |
300 |
1"\2" |
25.4\50 |
2.8/3.0/3.2 x 7/8/40 |
20/21 |
|
SMT07350 |
14" |
350 |
1"\2" |
25.4\50 |
3.2/4.0 x 7/8 x 40 |
24 |
|
SMT07400 |
16" |
400 |
2" |
50 |
4.0/4.2 x 7/8 x 40 |
28 |
|
SMT07450 |
18" |
450 |
2" |
50 |
4.0/4.2 x 7/8 x 40 |
32 |
|
SMT07500 |
20" |
500 |
2"\3" |
50\80 |
4.2/4.6 x 7/8 x 40 |
36 |
|
SMT07600 |
24" |
600 |
2"\3" |
50\80 |
4.6/5.0 x 7/8 x 40 |
42 |
|
SMT07700 |
28" |
700 |
2"\3" |
50\80 |
6.5/7.5 x 8/10 x 40 |
50 |
|
SMT07900 |
36" |
900 |
3"\4" |
80\100 |
7.0/7.5 x 10 x 24 |
64 |
|
SMT071000 |
40" |
1000 |
4" |
100 |
7.0/7.5 x 10 x 24 |
70 |
|
SMT071200 |
48" |
1200 |
4" |
100 |
7.5/8.0 x 10 x 24 |
80 |
|
※Laser Welded Diamond Saw Blade
| |
|
|
| |
|
ORDER NO |
OUTER DIAMETER(D) |
INNER DIAMETER(H) |
SEGMENT SIZE |
SEGMENT |
|
|
INCHES |
MM |
INCHES |
METRIC(MM) |
(T x H x L) |
PCS |
|
SMT08150 |
4" |
105 |
20/7\8" |
20\22.23 |
1.7 x 7 x 35 |
8 |
|
SMT08115 |
4.5" |
115 |
20/7\8" |
20\22.23 |
2.0 x 7 x 32 |
9 |
|
SMT08125 |
5" |
125 |
20/7\8" |
20\22.23 |
2.0 x 7 x 32 |
10 |
|
SMT08150 |
|
150 |
20/7\8" |
20\22.23 |
2.2 x 7 x 33 |
11 |
|
SMT08180 |
7" |
180 |
20/7\8" |
20\22.23 |
2.2 x 7 x 35 |
13 |
|
SMT08230 |
9" |
230 |
20/7\8" |
20\22.23 |
2.5 x 7 x 40 |
16 |
|
SMT08250 |
10" |
250 |
7/8"\1 |
22.23\25.4 |
2.5 x 7 x 40 |
17/18 |
|
SMT08300 |
12" |
300 |
1"\2" |
25.4\50 |
2.8 x 7 x 40 |
20/21 |
|
SMT08350 |
14" |
350 |
1"\2" |
25.4\50 |
2.8 x 7 x 40 |
24 |
|
SMT08400 |
16" |
400 |
1"\2" |
25.4\50 |
3.2 x 7 x 40 |
28 |
|
SMT08450 |
18" |
450 |
1"\2" |
25.4\50 |
3.2 x 7 x 40 |
32 |
|
SMT08500 |
20" |
500 |
1"\2" |
25.4\50 |
3.2 x 7 x 40 |
36 |
|
SMT08550 |
22" |
550 |
1"\2" |
25.4\50 |
3.2 x 7 x 40 |
38 |
|
SMT08600 |
24" |
600 |
1"\2" |
25.4\50 |
3.2 x 7 x 40 |
42 |
|
※Tuckpoint Diamond Saw Blade
|
|
| |
|
ORDER NO |
OUTER DIAMETER(D) |
SEGMENT SIZE |
| |
INCHES |
MM |
INCHES |
METRIC(MM) |
|
SMT141051 |
4" |
105 |
1/4" |
6.4 |
|
SMT141052 |
4" |
105 |
1/3" |
8 |
|
SMT141151 |
4.5" |
115 |
1/4" |
6.4 |
|
SMT141152 |
4.5" |
115 |
1/3" |
8 |
|
SMT141251 |
5" |
125 |
1/4" |
6.4 |
|
SMT141252 |
5" |
125 |
1/3" |
8 |
|
SMT141801 |
7" |
180 |
1/4" |
6.4 |
|
SMT141802 |
7" |
180 |
1/3" |
8 |
|
SMT14200 |
8" |
200 |
1/3" |
8 |
|
SMT14300 |
12" |
300 |
11/14" |
20 |
|
SMT14350 |
14" |
350 |
11/14" |
20 | | |
