D1A8
STRAIGHT WHEEL
DIAMOND IN THROUGHOUT |
|
|

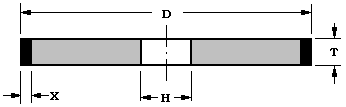

D1A1
STRAIGHT WHEEL
DIAMOND IN PERIPHERY |
|
Application: |
|
-1A1 grinding wheel used for machining of conical, cylindrical and flat surface, cylindrical and conical apertures. |
|
-Machining of cylindrical surface details and surface ends by one setting. |
|
-Machining of recesses and slots of hard alloyed stamps. |
|
-Sharpening and finishing of hard alloyed tools. |
|
*The abrasive layer is made of diamond or CBN in resin, metal or vitrified bond. |
|
|
DW
MOUNTED ON MANDREL
DIAMOND THROUGHOUT |
|
|
NSC
SOLID DIAMOND
CONE ROUTER |
|
|
D1A1R
CUT-OFF -- STEEL CENTER
DIAMOND IN PERIPHERY |
|
Application: |
|
-1A1R cutting wheel is used for cutting of hard alloys, glass, marble, quarts, semi-conductors, ceramics, decorative stones. |
|
*The abrasive layer of 1A1R cutting wheel is made of diamond and CBN in resin or metal bond. |
|
|

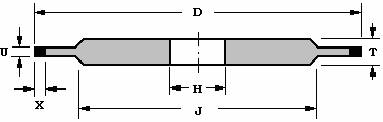

D14A1
STRAIGHT RAISED - HUB
DIAMOND IN PERIPHERY |
|
|
D3A1
STRAIGHT - RAISED HUB
DIAMOND IN PERIPHERY |
|
Application: |
|
-14A1 3A1 type grinding wheel used for machining of conical, cylindrical and flat surface, cylindrical and conical apertures. |
|
-The 14A1 3A1 grinding wheel also used for sharpening and finishing of hard alloyed tools. |
|
*The abrasive layer of this kind of grinding wheel can be made of diamond and CBN in resin or metal bond. |
|
|
D1V1
STRAIGHT FACE ANGLE
DIAMOND IN PERIPHERY |
|
|

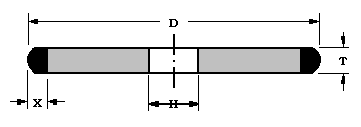

D1F1
STRAIGHT - FACE RADIUS
DIAMOND IN PERIPHERY |
|
|
D1FF1
STRAIGHT FACE RADIUS
DIAMOND IN PERIPHERY |
|
Application: |
|
-1F1 1FF1 grinding wheel used for machining of conical, cylindrical and flat surface, cylindrical and conical apertures. |
|
-Machining of cylindrical surface details and surface ends by one setting. |
|
-Machining of recesses and slots of hard alloyed stamps. |
|
-Sharpening and finishing of hard alloyed tools. |
|
*The abrasive layer can be made of diamond and CBN in resin, metal or vitrified bond. |
|
|

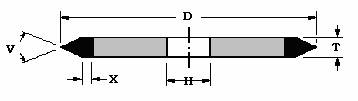

D1E1
STRAIGHT - FACE ANGLE
DIAMOND IN PERIPHERY |
|
|

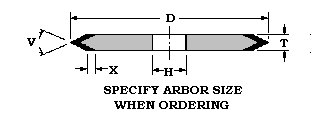

D1EE1
STRAIGHT FACE ANGLE. "E" SHAPED CORE
DIAMOND IN PERIPHERY |
|
Application: |
|
-14EE1 grinding wheel used for glass, crystal, outside threading and grinding. |
|
-Grinding of profiled details made of hard alloys and other hard to process materials. |
|
*The abrasive layer is made of diamond and CBN in resin or metal bond. |
|
|

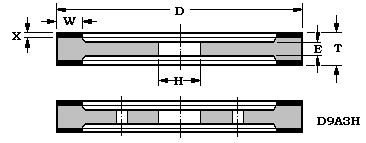

D9A3
DOUBLE CUP
DIAMOND IN RIMS |
|
Application: |
|
-9A3 grinding wheel used for sharpening and finishing of hard alloyed tools, processing of glass, ceramic, quarts, semi-conductors. |
|
*The abrasive layer is made of diamond and CBN in resin, metal or vitrified bond. |
|
|

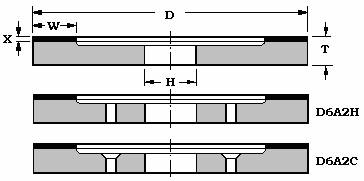

D6A2
STRAIGHT CUP
DIAMOND IN RIM |
|
Application: |
|
-6A2 grinding wheel used for sharpening and finishing of hard alloyed tools (cutters,drills and others) |
|
-Machining of glass, ceramics, quarts, semi-conductors and other non-metallic materials. |
|
*The abrasive layer of the 6A2 grinding wheel can be made of synthetic diamond powder and CBN abrasive in resin, metal or vitrified bond. |
|
|

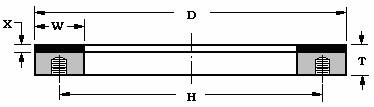

D2A2T
CYLINDER -- THREADED HOLES
DIAMOND IN RIM |
|
|

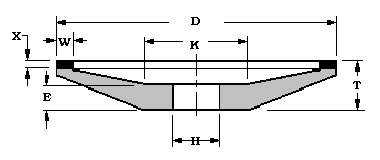

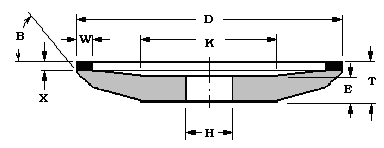

D12A2
DISH WHEEL
DIAMOND IN RIM |
|
Application: |
|
-12A2-45° grinding wheel used for sharpening and finishing of multiple-blade tools cutters back surface (with straight and spiral teeth),drills and other tools made of hard alloy. |
|
-this kind of diamond grinding wheel also used for processing of flat machine parts surfaces, semiconductor material, ceramic material, precious stone, quartz and other materials. |
|
*The abrasive layer is made of synthetic diamond powder in resin or metal bond. |
|
12A2-20° grinding wheel used for sharpening and finishing of front surface of reamer teeth, hobbing cutters, circular saws, drawing dies and tools made of hard alloys. |
|
*The abrasive layer is made of synthetic diamond powder in resin or vitrified bond. |
|
|

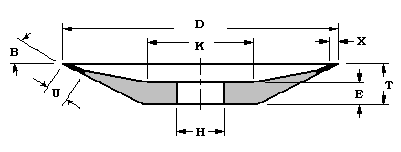

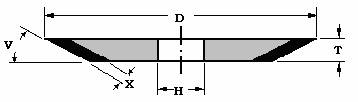

D12V4
DISH WHEEL
DIAMOND BEVELED INSIDE |
|
Application: |
|
-12V4 grinding wheel used for machining of conical, cylindrical and flat surface, cylindrical and conical apertures. |
|
-Machining of cylindrical surface details and surface ends by one setting. |
|
-Machining of recesses and slots of hard alloyed stamps. |
|
-Sharpening and finishing of hard alloyed tools. |
|
*The abrasive layer can be made of synthetic diamond powder and CBN powder in resin, metal or vitrified bond. |
|
|
D11A2
FLARING CUP
DIAMOND IN RIM
45° < S < 70 |
|
Application: |
|
-11A2 type grinding wheel used for sharpening and finishing of front surface of reamer teeth, hobbing cutters, circular saws, drawing dies and tools made of hard alloy. |
|
*The abrasive layer is made of diamond powder in resin or vitrified bond. |
|
|
D11V9
BOWL SHAPE
DIAMOND IN PERIPHERY |
|
Application: |
|
-11V9 grinding wheel used for sharpening and finishing of back and side surface of hard alloy. |
|
*The abrasive layer can be synthetic diamond powder and CBN in resin, metal or vitrified bond. |
|
|

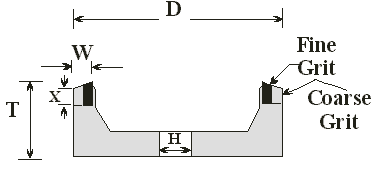

D6A9
DOUBLE RIM
DIAMOND IN PERIPHERY |
|
Application: |
|
-Used for sharpening and finishing of special tools. |
|
-Double diamond or CBN abrasive layer. |
|
*The abrasive layer is made of synthetic diamond powder in resin, metal or vitrified bond. |
|
|

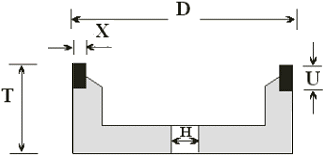

D6A9
FLARING CUP
DIAMOND IN PERIPHERY |
|
Application: |
|
-6A9 type grinding wheel used for sharpening and finishing of special tools. |
|
*The abrasive layer is made of synthetic diamond powder and CBN abrasive in resin, metal or vitrified bond. |
|
|
D15A2
DISH WHEEL
DIAMOND IN RIM |
|
|

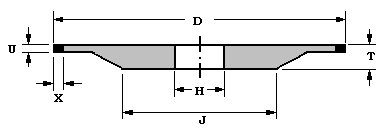

D4A2P
DISH WHEEL
DIAMOND IN RIM |
|
Application: |
|
-4A2 grinding wheel used for sharpening and finishing of front surface of multiple-blade tools. |
|
-The rim layer is made of synthetic diamond powder in metal,resin or vitrified bonds. |
|
-Coolant is required for metal bond 4a2 diamond grinding wheels |
|
|

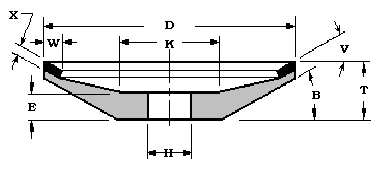

D12V9
DISH WHEEL
DIAMOND IN PERIPHERY |
|
Application: |
|
-12V9 grinding wheel used for sharpening and finishing of cutting tools back surface. |
|
*The abrasive layer of the grinding wheel can be made of synthetic diamond powder and CBN powder in resin ,metal or vitrified bonds. |
|
|
D12B
DISH WHEEL
DIAMOND IN PERIPHERY |
|
|

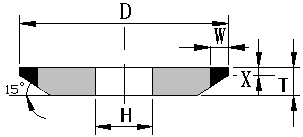

D4B1
DISH WHEEL
DIAMOND IN PERIPHERY |
|
Application: |
|
-4B1 grinding wheel used for sharpening and finishing of cutting tools like knife and blades. |
|
*The abrasive layer of the grinding wheel can be made of diamond and CBN powder in resin, metal or vitrified bond. |
|
|
DHH1
HAND HONE
DIAMOND ONE END |
|
|
DHH2
HAND HONE
DIAMOND BOTH ENDS |
|
|
|
