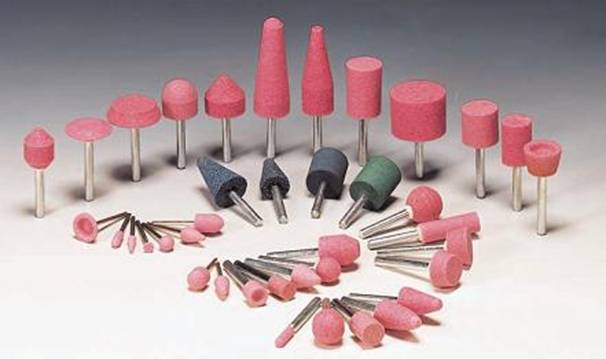

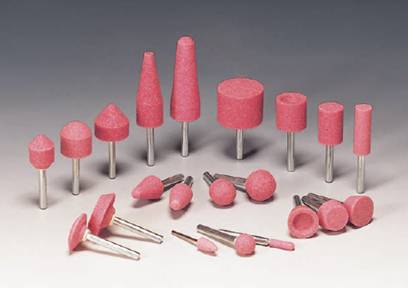

Mounted point for deburring, sharpening and internal grinding
Specification Guide
| ABRASIVE |
A |
Regular Aluminum Oxide - soft steel & cast iron |
|
When ordering, please specify: |
| WA |
White Aluminum Oxide - hard steel, general purpose |
Specification(marking) |
| PA |
Pink Aluminum Oxide - cool cutting works for hardened steel |
*Shape No by website if listed |
| SA |
Single Crystal Aluminum Oxide - superior forming & long life |
*Diameter(D) & Length(L) of projected |
| C |
Dark Silicon Carbide - cast iron, non-ferrous, non metal |
(unless otherwise specified, standard |
| GC |
Green Silicon Carbide - cemented carbide |
shaft dimension will be delivered). |
| GRIT |
16,24,36,46,60,80,100,120,150,180,220,240,320 |
*Kind of material to be ground |
| GRADE |
H,I,J,K,L,M,N,O,P,Q,R,S,T |
|
| BOND |
V(vitrified),B(resinoid),R(rubber) |
| Marking of Mounted Point's Dimension |
 |
D: Diameter of Abarasive |
(Ex.A5): 3/4"x1.1/8"-1/4x1.1/2" |
|
T: Thickness of Abrasive |
(20x28-6.4x38) |
|
d: Diameter of Projected Mandrel |
D x T-d x l |
|
l: Length of Projected Mandrel |
|
 |
"O"(Overhang or distance between grinder chuck and the abrasive on the spindle). |
| The larger the overhang("O"),the lower the speed. For the right speed, please consider it on the relevant use instruction. |
| |
| SAIMENG mounted point is offering of high quality, |
| fast stock removal and a full range of standard shapes |
| |
 |
 |
| Available wheel size |
| Shape NO. |
Dimension-mm(inch) |
Mandrel Diameter |
Shape NO. |
Dimension-mm(inch) |
Mandrel Diameter |
| Dia X Thick (DXT) |
mm(inch) |
Dia X Thick (DXT) |
mm(inch) |
 |
A1 |
20 X 63 (3/4 x 2.1/2) |
6 (1/4) |
 |
A23 |
20 X 25 (3/4 X 1) |
6 (1/4) |
 |
A2 |
25 X 32 (1 X 1.1/4) |
6 (1/4) |
 |
A24 |
6 X 20 (1/4 X 3/4) |
6 (1/4) |
 |
A3 |
25 X 70 (1 X 2.3/4) |
6 (1/4) |
 |
A25 |
Φ25 (1) |
6 (1/4) |
 |
A4 |
32 X 32 (1.1/4 X 1.1/4) |
6 (1/4) |
 |
A26 |
Φ16 (5/8) |
6 (1/4) |
 |
A5 |
20 X 28 (3/4 X 1.1/8) |
6 (1/4) |
 |
A31 |
35 X 25 (1.3/8 X 1) |
6 (1/4) |
 |
A6 |
20 X 28 (3/4 X 1.1/8) |
6 (1/4) |
 |
A32 |
25 X 16 (1 X 5/8) |
6 (1/4) |
 |
A11 |
22 X 50 (7/8 X 2) |
6 (1/4) |
 |
A33 |
25 X 13(1 X 1/2) |
6 (1/4) |
 |
A12 |
18 X 32 (11/16 X 1.1/4) |
6 (1/4) |
 |
A34 |
38 X 10 (1.1/2 X 3/8) |
6 (1/4) |
 |
A13 |
28 X 28 (1.1/8 X 1.1/8) |
6 (1/4) |
 |
A35 |
25 X 10 (1 X 3/8) |
6 (1/4) |
 |
A14 |
18 X 22 (11/16 X 7/8) |
6 (1/4) |
 |
A36 |
40 X 10 (1.5/8 X 3/8) |
6 (1/4) |
 |
A15 |
6 X 27 (1/4 X 1.1/16) |
6 (1/4) |
 |
A37 |
32 X 6 (1.1/4 X 1/4) |
6 (1/4) |
 |
A21 |
25 X 25 (1 X 1) |
6 (1/4) |
 |
A38 |
25 X 25 (1 X 1) |
6 (1/4) |
 |
A22 |
19 X 16 (3/4 X 5/8) |
6 (1/4) |
 |
A39 |
20 X 20 (3/4 X 3/4) |
6 (1/4) |
| |
|
|
|
|
|
|
|
|
 |
SAIMENG mounted point is offering of high quality,fast |
| stock removal, and a full range of standard shapes. |
| |
| Available Wheel Size |
| Shape No. |
Dimension-mm(inch) Dia X Thick (DXT) |
Mandrel Diameter mm(Inch) |
|
Shape No. |
Dimension-mm(inch) Dia X Thick (DXT) |
Mandrel Diameter mm(Inch) |
 |
B 41 |
16 X 16 (5/8 x 5/8) |
3 , 6 (1/8,1/4) |
 |
B 91 |
13 X 16 (1/2 X 5/8) |
3 , 6 (1/8,1/4) |
 |
B 42 |
13 X 20 (1/2 X 3/4) |
3 , 6 (1/8,1/4) |
 |
B 92 |
6 X 6 (1/4 X 1/4) |
3 (1/8) |
 |
B 43 |
6 X 8 (1/4 X 5/16) |
3 (1/8) |
 |
B 95 |
3 X 5 (1/8 X 3/16) |
3 (1/8) |
 |
B 44 |
6 X 10 (7/32 X 3/8) |
3 (1/8) |
 |
B 96 |
3 X 6 (1/8 X 1/4) |
3 (1/8) |
 |
B 45 |
5 X 8 (3/16X 5/16) |
3 (1/8) |
 |
B 97 |
3 X 10 (1/8 X 3/8) |
3 (1/8) |
 |
B 46 |
3 X 8 (1/8 X 5/16) |
3 (1/8) |
 |
B 98 |
2 X 6 (3/32 X 1/4) |
3 (1/8) |
 |
B 51 |
11 X 20 (7/16 X 3/4) |
3 , 6 (1/8,1/4) |
 |
B 101 |
16 X 18 (5/8 X 11/16) |
3 , 6 (1/8,1/4) |
 |
B 52 |
10 X 20 (3/8 X 3/4) |
3 , 6 (1/8,1/4) |
 |
B 102 |
16 X 13 (5/8 X 1/2) |
3 (1/8) |
 |
B 53 |
6 X 16 (1/4 X 5/8) |
3 (1/8) |
 |
B 103 |
16 X 5 (5/8 X 3/16) |
3 , 6 (1/8,1/4) |
 |
B 54 |
6 X 13 (1/4 X 1/2) |
3 (1/8) |
 |
B 104 |
8 X 10 (5/16 X 3/8) |
3 (1/8) |
 |
B 55 |
3 X 6 (1/8 X 1/4) |
3 (1/8) |
 |
B 105 |
6 X 6 (1/4 X 1/4) |
3 (1/8) |
 |
B 61 |
20 X 8 (3/4 X 5/16) |
3 , 6 (1/8,1/4) |
 |
B 106 |
3 X 3 (1/8 X 1/8) |
3 (1/8) |
 |
B 62 |
13 X 10 (1/2 X 3/8) |
3 , 6 (1/8,1/4) |
 |
B 111 |
11 X 18 (7/16 X 11/16) |
3 , 6 (1/8,1/4) |
 |
B 63 |
6 X 5 (1/4 X 3/16) |
3 (1/8) |
 |
B 112 |
10 X 13 (3/8 X 1/2) |
3 (1/8) |
 |
B 64 |
6 X 2 (1/4 X 1/6) |
3 (1/8) |
 |
B 114 |
6 X 10 (7/32 X 3/8) |
3 (1/8) |
 |
B 65 |
3 X 3 (1/8 X 1/8) |
3 (1/8) |
 |
B 115 |
2 X 3 (3/32 X 1/8) |
3 (1/8) |
 |
B 69 |
8 X 2 (5/16 X 1/10) |
3 (1/8) |
 |
B 121 |
Φ13 (1/2) |
3 , 6 (1/8,1/4) |
 |
B 70 |
20 X 3 (3/4 X 1/8) |
3 (1/8) |
 |
B 122 |
Φ10 (3/8) |
3 (1/8) |
 |
B 71 |
16 X 3 (5/8 X 1/8) |
3 (1/8) |
 |
B 123 |
Φ5 (3/16) |
3 (1/8) |
 |
B 72 |
13 X 3(1/2 X 1/8) |
3 (1/8) |
 |
B 124 |
Φ3 (1/8) |
3 (1/8) |
 |
B 73 |
13 X 3 (1/2 X 1/8) |
3 (1/8) |
 |
B 125 |
Φ6 (1/4) |
3 (1/8) |
 |
B 81 |
20 X 8 (3/4 X 5/16) |
3 (1/8) |
 |
B 131 |
13 X 13 (1/2 X 1/2) |
3 , 6 (1/8,1/4) |
 |
B 82 |
13 X 6 (1/2 X 1/4) |
3 (1/8) |
 |
B 132 |
10 X 13 (3/8 X 1/2) |
3 , 6 (1/8,1/4) |
 |
B 83 |
10 X 5 (3/8 X 3/16) |
3 (1/8) |
 |
B 133 |
10 X 10 (3/8 X 3/8) |
3 , 6 (1/8,1/4) |
 |
B 84 |
8 X 5 (5/16 X 3/16) |
3 (1/8) |
 |
B 135 |
6 X 13 (1/4 X 1/2) |
3 , 6 (1/8,1/4) |
| |
|
|
|
|
|
|
|
|
|
| GROUP "W" STANDARD SHAPE |
Available Wheel Size |
| ( W142 - W242 ) |
Shape No. |
Dimension-mm(inch) |
Mandrel Diameter |
| Dia x Thick(D x T) |
mm(inch) |
 |
|
 |
W142 |
2.5 X 6 (3/32 X 1/4) |
3 (1/8) |
| W143 |
3 X 3 (1/8 X 1/8) |
3 (1/8) |
| W144 |
3 X 6 (1/8 X 1/4) |
3 (1/8) |
| W145 |
3 X 10 (1/8 X 3/8) |
3 (1/8) |
| W146 |
3 X 13 (1/8 X 1/2) |
3 (1/8) |
| W149 |
4 X 6 (5/32 X 1/4) |
3 (1/8) |
| W152 |
5 X 6 (3/16 X 1/4) |
3 (1/8) |
| W153 |
5 X 10 (3/16 X 3/8) |
3 (1/8) |
| W154 |
5 X 13 (3/16 X 1/2) |
3 (1/8) |
| W158 |
6 X 3 (1/4 X 1/8) |
3 (1/8) |
| W160 |
6 X 6 (1/4 X 1/4) |
3 (1/8) |
| W162 |
6 X 10 (1/4 X 3/8) |
3 (1/8) |
| W163 |
6 X 13 (1/4 X 1/2) |
3,6(1/8,1/4) |
| SAIMENG mounted point is |
W164 |
6 X 20 (1/4 X 3/4) |
3 (1/8) |
| offering of high quality, |
W167 |
8 X 6 (5/11 X 1/4) |
3 (1/8) |
| fast stock removal, and a full |
W170 |
8 X 13 (5/16 X 1/2) |
3 (1/8) |
| range of standard shapes. |
W173 |
10 X 3 (3/8 X 1/8) |
3 (1/8) |
 |
|
W174 |
10 X 6 (3/8 X 1/4) |
3 (1/8) |
| W175 |
10 X 10 (3/8 X 3/8) |
3,6(1/8,1/4) |
| W176 |
10 X 13 (3/8 X 1/2) |
3,6(1/8,1/5) |
| W177 |
10 X 20 (3/8 X 3/4) |
3,6(1/8,1/6) |
| W178 |
10 X 25 (3/8 X 1) |
3,6(1/8,1/7) |
| W179 |
10 X 32 (3/8 X 1.1/4) |
3,6(1/8,1/8) |
| W182 |
13 X 3 (1/2 X 1/8) |
3,6(1/8,1/9) |
| W183 |
13 X 6 (1/2 X 1/4) |
3,6(1/8,1/10) |
| W184 |
13 X 10 (1/2 X 3/8) |
3,6(1/8,1/11) |
| W185 |
13 X 13 (1/2 X 1/2) |
3,6(1/8,1/12) |
| W186 |
13 X 20 (1/2 X 3/4) |
3,6(1/8,1/13) |
| W187 |
13 X 25 (1/2 X 1) |
3,6(1/8,1/14) |
| W188 |
13 X 38 (1/2 X 1.1/2) |
3,6(1/8,1/15) |
| W189 |
13 X 50 (1/2 X 2) |
3,6(1/8,1/16) |
| |
W191 |
16 X 3 (5/8 X 1/8) |
3 (1/8) |
| W194 |
16 X 13 (5/8 X 1/2) |
3,6(1/8,1/18) |
| W195 |
16 X 20 (5/8 X 3/4) |
3,6(1/8,1/19) |
| W196 |
16 X 25 (5/8 X 1) |
3,6(1/8,1/20) |
| W197 |
16 X 50 (5/8 X 2) |
3,6(1/8,1/21) |
| W200 |
20 X 3 (3/4 X 1/8) |
3,6(1/8,1/22) |
| W201 |
20 X 6 (3/4 X 1/4) |
3,6(1/8,1/23) |
| W202 |
20 X 10 (3/4 X 3/8) |
3,6(1/8,1/24) |
| W203 |
20 X 13 (3/4 X 1/2) |
3,6(1/8,1/25) |
| W204 |
20 X 20 (3/4 X 3/4) |
3,6(1/8,1/26) |
| W205 |
20 X 25 (3/4 X 1) |
6 (1/4) |
| W207 |
20 X 38 (3/4 X 1.1/2) |
6 (1/4) |
| W208 |
20 X 50 (3/4 X 2) |
6 (1/4) |
| W215 |
25 X 3 (1 X 1/8) |
3,6(1/8,1/4) |
| W216 |
25 X 6 (1 X 1/4) |
3,6(1/8,1/4) |
| W217 |
25 X 10 (1 X 3/8) |
3,6(1/8,1/4) |
| W218 |
25 X 13 (1 X 1/2) |
6 (1/4) |
| W220 |
25 X 25 (1 X 1) |
6 (1/4) |
| W221 |
25 X 38 (1 X 1.1/2) |
6 (1/4) |
| W222 |
25 X 50 (1 X 2) |
6 (1/4) |
| W225 |
32 X 6 (1.1/4 X 1/4) |
3,6(1/8,1/4) |
| W226 |
32 X 10 (1.1/4 X 3/8) |
6 (1/4) |
| W227 |
32 X 13 (1.1/4 X 1/2) |
6 (1/4) |
| W228 |
32 X 20 (1.1/4 X 3/4) |
6 (1/4) |
| W230 |
32 X 32 (1.1/4 X 1.1/4) |
6 (1/4) |
| W232 |
32 X 50 (1.1/4 X 2) |
6 (1/4) |
| W235 |
38 X 6 (1.1/2 X 1/4) |
6 (1/4) |
| W236 |
38 X 13 (1.1/2 X 1/2) |
6 (1/4) |
| W237 |
38 X 25 (1.1/2 X 1) |
6 (1/4) |
| W238 |
38 X 38 (1.1/2 X 1.1/2) |
6 (1/4) |
| W242 |
50 X 25 (2 X 1) |
6 (1/4) | |
